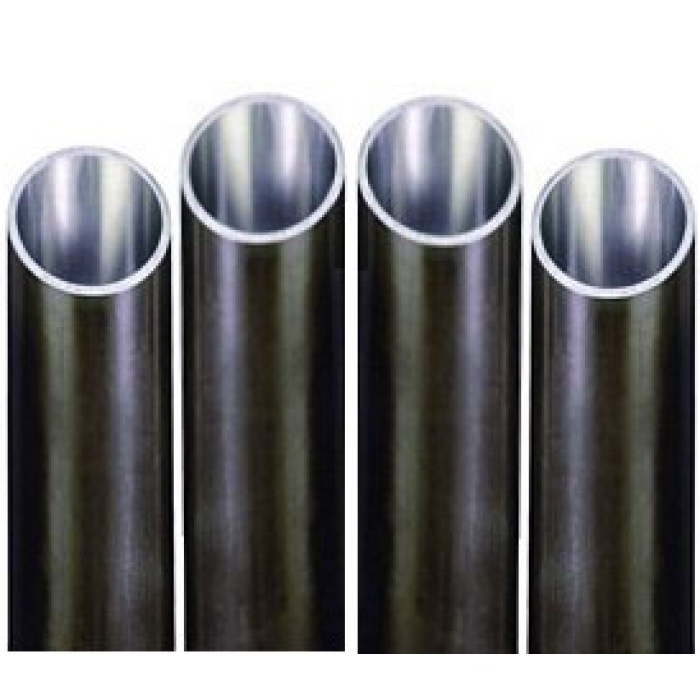

Hidrolik silindir honlanmış borusu H8 ithal

Satışını yapmış olduğumuz honlanmış borular H8 standardında olup Avrupa menşeili ithaldir.
E355+SR (EN 10305-1) / ST52-5 BK+S (DİN 2391) hidrolik silindirler için, geniş ölçü yelpazesine sahip, yüksek kaliteli, gerilimi giderilmiş soğuk çekim dikişsiz borulardan oluşan stoğumuzdan siz değerli müşterilerimiz için ücretsiz kesim sağlamaktayız.

• SATIŞLARIMIZ METRE BAZINDADIR, LÜTFEN 1 METRE VE KATLARI OLARAK SİPARİŞ VERİNİZ (özel ölçü siparişleriniz için lütfen bizimle iletişime geçiniz)
• Honlanmış boru ürünleri kargo firmaları tarafından 3 metreye kadar sorunsuzca taşınmakta olup daha uzun verilen siparişlerde ambar firmaları ile çalışmak daha uygun olabilmektedir. Ücretsiz nakliye kampanyamız yalnızca kargo firması ile taşınan ürünlerde geçerlidir. Ambar ile alımlarınızda ambar alım organizasyonunun tarafınızca yapılması gerekmektedir. Anlayışınız için teşekkürler.



Teknik Özellikler
Çelik Sınıfı/Standart	(EN 10305-1) /StS2-5 (DİN 2591)
Isıl işlem	+SR (EN 10305-1) /BK+S (DİN 2391)
Tolerans Sınıfı	EN ISO 286-2 (ISO 88)
iç Yüzey Hassasiyeti	Ra 0,2 gm, RC 3 pm.
Sapma	0,5 mm:1000 mm/l mm:1000 mm
İç Yüzey Sertliği	HB 190-245
Üretim Boyu	5-9 m

HONLANMIŞ EN 10305-1 DİKİŞSİZ/EN 10305-2 DİKİŞLİ BORU ÖLÇÜ, AĞIRLIK VE TOLERANS TABLOSU

İç Çap (mm)	Dış Çap (mm)	Ağırlık (kg/m)	İç Çap Toleransı (mm)	Dış Çap Toleransı (mm)
25,0	35,0	3,70	-0/+0.033	±0,15
30,0	40,0	4,32	-0/+0.033	±0,15
	45,0	6,94	-0/+0.033	±0,20
32,0	42,0	4,56	-0/+0.039	±0,20
35,0	45,0	4,93	-0/+0.039	±0,20
40,0	50,0	5,55	-0/+0.039	±0,20
	55,0	8,79	-0/+0.039	±0,25
45,0	55,0	6,17	-0/+0.039	±0,25
	60,0	9,71	-0/+0.039	±0,25
50,0	60,0	6,78	-0/+0.039	±0,25
	65,0	10,64	-0/+0.039	±0,30
	70,0	14,80	-0/+0.039	±0,30
55,0	65,0	7,40	-0/+0.046	±0,30
	70,0	11,56	-0/+0.046	±0,30
60,0	70,0	8,01	-0/+0.046	±0,30
	75,0	12,48	-0/+0.046	±0,35
	80,0	17,26	-0/+0.046	±0,35
63,0	73,0	8,38	-0/+0.046	±0,35
	75,0	10,21	-0/+0.046	±0,35
	78,0	13,04	-0/+0.046	±0,35
65,0	75,0	8,63	-0/+0.046	±0,35
	80,0	13,41	-0/+0.046	±0,35
	85,0	18,50	-0/+0.046	±0,40
70,0	80,0	9,25	-0/+0.046	±0,35
	85,0	14,33	-0/+0.046	±0,40
	90,0	19,73	-0/+0.046	±0,40
75,0	85,0	9,86	-0/+0.046	±0,40
	90,0	15,26	-0/+0.046	±0,40
	95,0	20,96	-0/+0.046	±0,45
80,0	90,0	10,48	-0/+0.046	±0,40
	95,0	16,18	-0/+0.046	±0,45
	100,0	22,20	-0/+0.046	±0,45
85,0	95,0	11,10	-0/+0.054	±0,45
	100,0	17,11	-0/+0.054	±0,45
	105,0	23,43	-0/+0.054	±0,50
90,0	100,0	11,71	-0/+0.054	±0,45
	102,0	14,21	-0/+0.054	±0,50
	105,0	18,03	-0/+0.054	±0,50
	110,0	24,66	-0/+0.054	±0,50
95,0	105,0	12,33	-0/+0.054	±0,50
	107,0	14,94	-0/+0.054	±0,50
	110,0	18,96	-0/+0.054	±0,50
	115,0	25,89	-0/+0.054	±0,50
100,0	110,0	12,95	-0/+0.054	±0,50
	112,0	15,68	-0/+0.054	±0,50
	115,0	19,88	-0/+0.054	±0,50
	120,0	27,13	-0/+0.054	±0,50
	125,0	34,68	-0/+0.054	±0,70
105,0	115,0	13,56	-0/+0.054	±0,50
	117,0	16,42	-0/+0.054	±0,50
	120,0	20,81	-0/+0.054	±0,50
	125,0	28,36	-0/+0.054	±0,70
108,0	120,7	17,90	-0/+0.054	±0,70
	127,0	27,59	-0/+0.054	±0,70
110,0	120,0	14,18	-0/+0.054	±0,50
	125,0	21,73	-0/+0.054	±0,70
	130,0	29,59	-0/+0.054	±0,70
	135,0	37,76	-0/+0.054	±0,70
	140,0	46,24	-0/+0.054	±0,70
115,0	130,0	22,66	-0/+0.054	±0,70
	135,0	30,83	-0/+0.054	±0,70
	140,0	39,30	-0/+0.054	±0,70
	145,0	48,09	-0/+0.054	±0,80
120,0	130,0	15,41	-0/+0.054	±0,70
	135,0	23,58	-0/+0.054	±0,70
	140,0	32,06	-0/+0.054	±0,70
	145,0	40,85	-0/+0.054	±0,80
	150,0	49,94	-0/+0.054	±0,80
125,0	135,0	16,03	-0/+0.063	±0,70
	137,0	19,38	-0/+0.063	±0,70
	140,0	24,51	-0/+0.063	±0,70
	145,0	33,29	-0/+0.063	±0,80
	150,0	42,39	-0/+0.063	±0,80
	155,0	51,79	-0/+0.063	±0,80
130,0	140,0	16,65	-0/+0.063	±0,70
	142,0	20,12	-0/+0.063	±0,80
	145,0	25,43	-0/+0.063	±0,80
	150,0	34,53	-0/+0.063	±0,80
	155,0	43,93	-0/+0.063	±0,80
	160,0	53,64	-0/+0.063	±0,80
135,0	145,0	17,26	-0/+0.063	±0,80
	150,0	26,36	-0/+0.063	±0,80
	155,0	35,76	-0/+0.063	±0,80
	160,0	45,47	-0/+0.063	±0,80
	165,0	55,49	-0/+0.063	±0,90
140,0	150,0	17,88	-0/+0.063	±0,80
	152,0	21,60	-0/+0.063	±0,80
	155,0	27,28	-0/+0.063	±0,80
	160,0	36,99	-0/+0.063	±0,80
	165,0	47,01	-0/+0.063	±0,90
	170,0	57,34	-0/+0.063	±0,90
	180,0	78,92	-0/+0.063	±0,90
145,0	155,0	18,50	-0/+0.063	±0,80
	160,0	28,21	-0/+0.063	±0,80
	165,0	38,23	-0/+0.063	±0,90
	170,0	48,55	-0/+0.063	±0,90
	175,0	59,19	-0/+0.063	±0,90
150,0	160,0	19,11	-0/+0.063	±0,80
	165,0	29,13	-0/+0.063	±0,90
	170,0	39,46	-0/+0.063	±0,90
	175,0	50,09	-0/+0.063	±0,90
	180,0	61,04	-0/+0.063	±0,90
160,0	170,0	20,35	-0/+0.063	±0,90
	175,0	30,98	-0/+0.063	±0,90
	180,0	41,92	-0/+0.063	±0,90
	185,0	53,18	-0/+0.063	±1,00
	190,0	64,74	-0/+0.063	±1,00
	195,0	76,60	-0/+0.063	±1,00
	200,0	88,78	-0/+0.063	±1,00
170,0	185,0	32,83	-0/+0.063	±1,00
	190,0	44,39	-0/+0.063	±1,00
	195,0	56,26	-0/+0.063	±1,00
	200,0	68,44	-0/+0.063	±1,00
180,0	195,0	34,68	-0/+0.063	±1,00
	200,0	46,86	-0/+0.063	±1,00
	205,0	59,34	-0/+0.063	±1,10
	210,0	72,13	-0/+0.063	±1,10
	215,0	85,24	-0/+0.063	±1,10
	220,0	98,65	-0/+0.063	±1,10
190,0	205,0	36,53	-0/+0.072	±1,10
	210,0	49,32	-0/+0.072	±1,10
	215,0	62,42	-0/+0.072	±1,10
	220,0	75,83	-0/+0.072	±1,10
200,0	210,0	25,28	-0/+0.072	±1,10
	215,0	38,38	-0/+0.072	±1,10
	220,0	51,79	-0/+0.072	±1,10
	225,0	65,51	-0/+0.072	±1,20
	230,0	79,53	-0/+0.072	±1,20
	240,0	108,51	-0/+0.072	±1,20
	245,0	123,46	-0/+0.072	±1,30
	244,5	121,95	-0/+0.072	±1,30
	250,0	138,72	-0/+0.072	±1,30
210,0	245,0	98,18	-0/+0.072	±1,30
220,0	245,0	71,67	-0/+0.072	±1,30
	250,0	86,93	-0/+0.072	±1,30
	270,0	151,05	-0/+0.072	±1,40
250,0	280,0	98,03	-0/+0.072	±1,40
	300,0	169,55	-0/+0.072	±1,50
